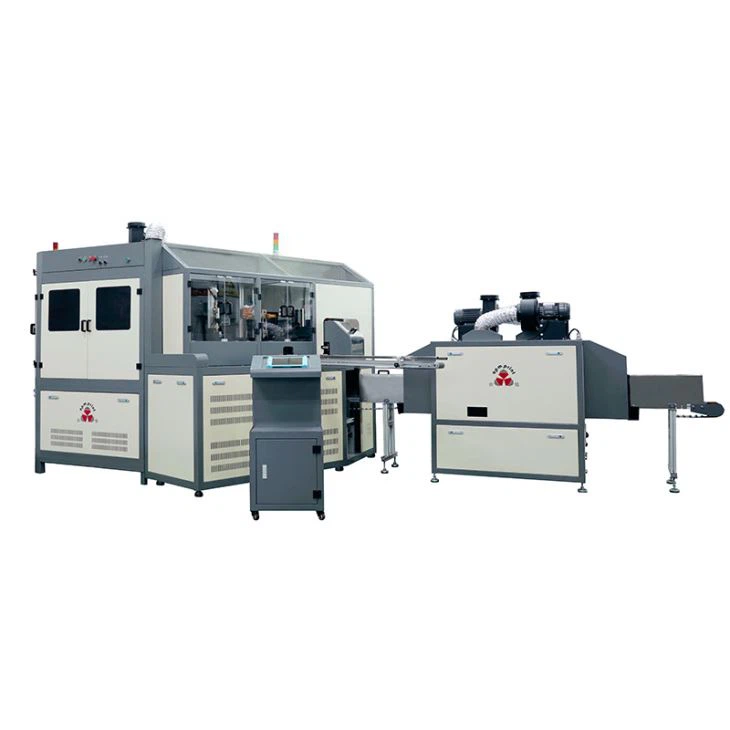

APM-CNC323-8 All servo driven CNC screen printer
Application:
Different shapes of bottles
General Description:
1. Automatic loading system with multi axis servo robot.
2. Indexing table system with best accuracy.
3. Automatic printing system with all servo driven: printing head, mesh frame, rotation, container up/down all driven by servo motors.
4. All jigs with individual servo motor driven for rotation.
5. Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen.
6. LED UV curing system with longer life time and energy saving. Last color is electrode UV system from Europe.
7. Automatic unloading with servo robot.
8. Safety operation with CE.
Options
1. The 2nd color can be replaced with hot stamping head, make multi-color screen printing and hot stamping in line.
2. Camera vision system, for cylindrical products without registration point, to escape the molding line.
3. Simplified model: CNC323-8 for cylindrical bottles only. Printing head without servo motor driven, no product up/down floating.
Tech-data:
Parameter | CNC323, 324, 325, 326, 327, 328 |
Power | 380AVC 3Phase 50/60Hz |
Air consumption | 6~7 bars |
Max printing speed | 2400~3000pcs/h |
Printing Diameter | 15-90mm |
Printing Length | 25-330mm |
Video:

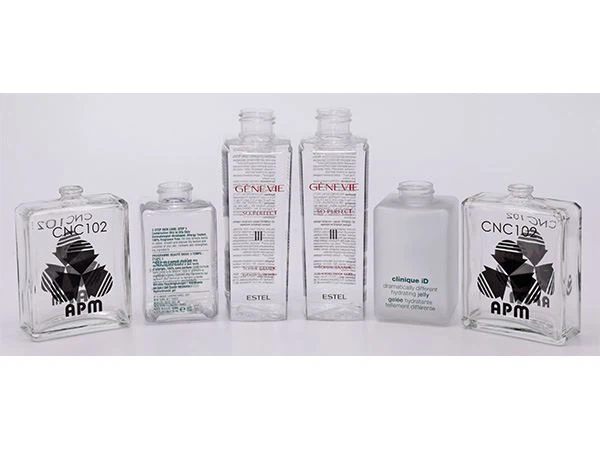

Samples:
