Description

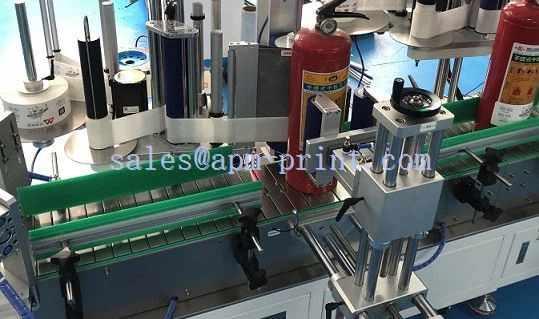

The fire extinguisher labeling machine is designed for labeling on the fire extinguisher tank, use the barometer as a register point to label at a designated position.
Application

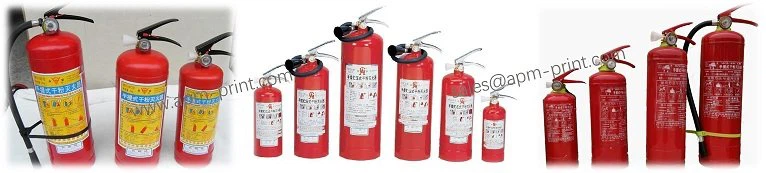

Dry powder fire extinguisher tank with a gross weight of 1.5~7.5 kg (net weight is 1~5 kg).
Operation process: put the product into conveyor belt-> product conveying-> product separation-> product inspection-> product registering-> labeling and overlabeling-> collect the products.
Features
1. The stainless steel plate chain conveyor belts is more durable, the height of the conveyor belt is 565mm, which is convenient to place bottles.
2. The product is rotated and registered by the cylinder to ensure the labeling accuracy.
3. Simple and time-saving label winding, adjustable labeling position.
4. Automatic photoelectric tracking to realize no products no labeling.
5. High stability, high performance PLC + touch screen + photoelectric sensor.
6. The advanced electronic control system composed of the equipment supports the 7×24-hour operation of the equipment.
7. The fire extinguisher labeling machine can be equipped with double headers or multiple headers according to realize the function of sticking multiple labels at the same time.
Tech-data
| Labeling speed | 480-800 pcs/hour |
| Labeling accuracy | ±1.5mm |
| Applicable product size | Diameter：80-140mm H：150-460mm |
| Applicable label range | L：50-220mm W：50-220mm |
| Conveyor belt height | 565mm |
| Power | AC220V, 50HZ |
| Size and weight | about2500mm×1500mm×1630mm (L×W×H)/about 200Kg |
