Application

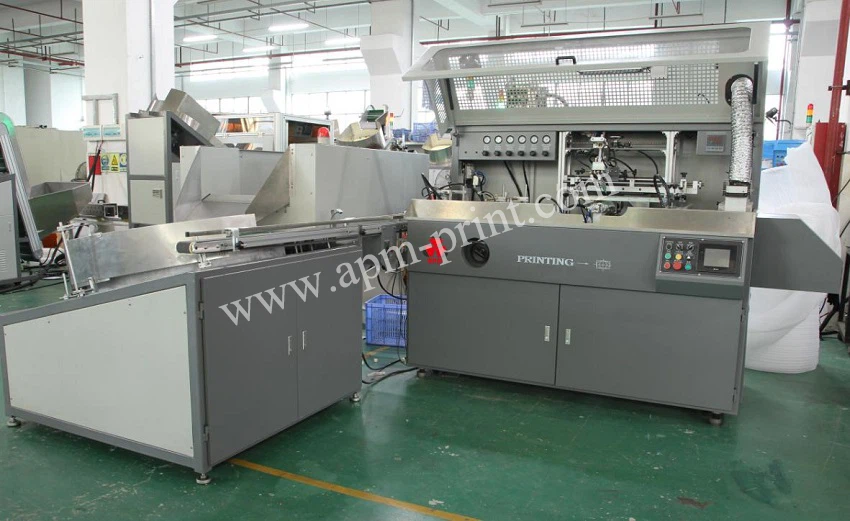

The APM-S102 is designed for multi-color decoration of cylindrical/ova/square/plastic glass bottles, cups, hard tubes at high production speeds. It is suitable for glass and plastic containers printing with UV ink. Need registration point for multi-color cylindrical bottle printing.
Reliability and speed make the S102 ideal for off-line or in-line 24/7 production.
General Description
1. Automatic loading system with belt (bowl feeder and hopper optional).
2. Auto flame treatment.
3. Perfect transmission system. It passes over the bottles fast and smooth.
4. Automatic 180 degree rotation for oval and square bottles.
5. Quick and easy change over from one product to another.
6. Auto electric UV drying or LED UV drying.
7. Reliable PLC control with touch screen display.
8. Automatic unloading.
9. CE standard.
Tech-data
|
Parameter \ Item |
APM-S102 1-8 color automatic screen printer |
|
Machine Dimension: |
|
|
Printing unit: |
1900x1200x1600mm |
|
Feeding unit (optional): |
3050x1300x1500mm |
|
Unloading unit (optional): |
1800x450x750mm |
|
Power: |
380V 3 phases 50/60Hz 6.5kw |
|
Air consumption |
5-7 bars |
|
Round container |
|
|
Printing Diameter: |
25--100mm |
|
Printing Length: |
50-280mm |
|
Max printing speed |
3000~4000pcs/hr |
|
Oval container |
|
|
Printing Radius: |
R20--R250mm |
|
Printing Width |
40-100mm |
|
Printing Length: |
30-280mm |
|
Max printing speed: |
3000~5000pcs/hr |
|
Square container |
|
|
Max printing length |
100-200mm |
|
Max printing width |
40-100mm |
|
Max printing speed: |
3000~4000pcs/hr |

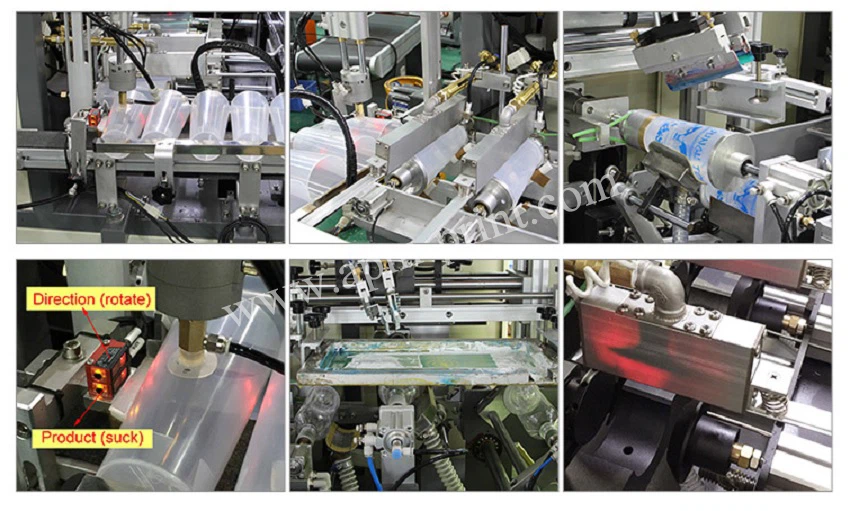

The Machine Details
Procedure
Auto loading onto belt--flame treatment--printing--LED UV drying or Electric UV drying-- Auto unloading
Printing Samples
Our Service
We will answer any of your Inquiry and consulting support at once.
We provide Sample testing support.
We welcome every customer visit our Factory.
We offer Training how to install the machine, training how to use the machine.
We have engineers available to service machinery overseas.
