Product Introduction

Automatic Caps Hot Stamping Machine

The Automatic Caps Hot Stamping Machine is a specialised equipment designed for high-efficiency gold foil stamping on cylindrical caps and bottles. It features an automatic feeding system, precise hot stamping (top and side), and automatic unloading with a dust removal function. This machine enhances productivity by reducing manual labour while ensuring consistent and high-quality printing. Ideal for cosmetics, beverage, and pharmaceutical industries, it offers a reliable solution for branding and decoration on round caps.

Key Functionalities

1. ✅Automatic Feeding System – Simply pour lids into the loading hopper, and the machine automatically sorts and aligns them, eliminating manual placement.

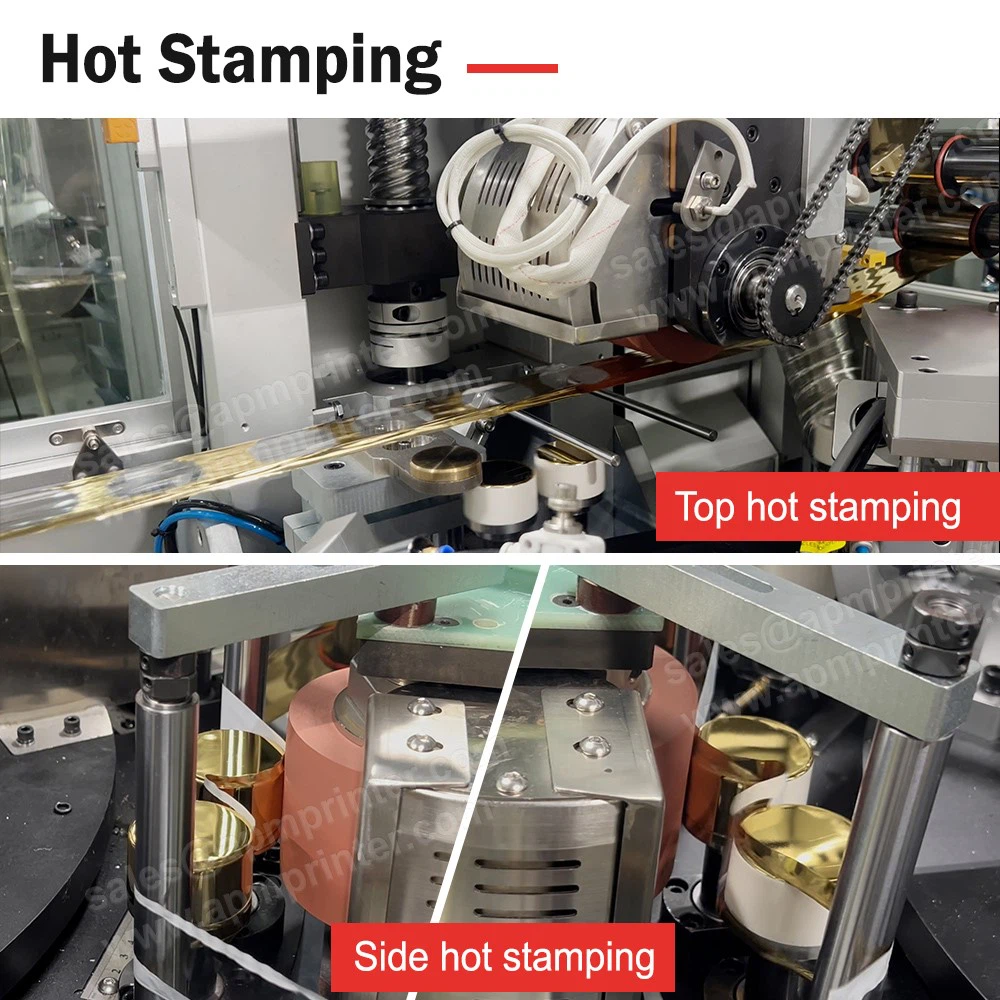

2. ✅ Dual Stamping Modes – Supports top hot stamping and side hot stamping for versatile design applications.
3. ✅ Efficient Unloading – Finished products are automatically discharged, streamlining production.
4. ✅ Dust Removal Function – Integrated cutting system minimizes debris, ensuring a clean working environment.

Technical Parameters

Parameter	Specification
Stamping Speed	30-50 pieces/min (adjustable)
Cap Diameter	20-100mm (adjustable molds)
Power Supply	220V/380V, 50/60Hz
Stamping Temperature	0-300°C (adjustable)
Machine Weight	Approx. 500kg
Air Pressure	0.5-0.7MPa
Machine Dimensions	Customizable based on requirements

Application Scenarios

The Automatic Round Caps Hot Stamping Machine is widely used in:
✔ Cosmetics – Luxury perfume and cream jar caps
✔ Beverage – Premium liquor and bottled drink caps
✔ Pharmaceuticals – Medicine bottle sealing and branding

FAQ

1. Q: Can this machine handle different cap sizes?
A: Yes, it supports adjustable molds for caps ranging from 20-100mm in diameter.

2. Q: Does it require frequent maintenance?
A: Regular cleaning and lubrication ensure long-term performance, but the machine is designed for durability.

3. Q: Is operator training complicated?
A: No, the automatic feeding system simplifies operation, and basic training is sufficient.

Service Support

⚙ Customisation: Tailored feeding and printing solutions based on capacity/size needs
📦 Delivery: 90 working days after order confirmation
🔧 Technical Support: 1-year warranty, lifetime maintenance
