Shenzhen Hejia Automatic Printing Machine Co., Ltd. is one of the leading manufacturers and suppliers of high speed automatic bottle screen printer in China, featured by quality products and good prices. Please rest assured to buy advanced high speed automatic bottle screen printer for sale here from our factory.
Product Description
Application

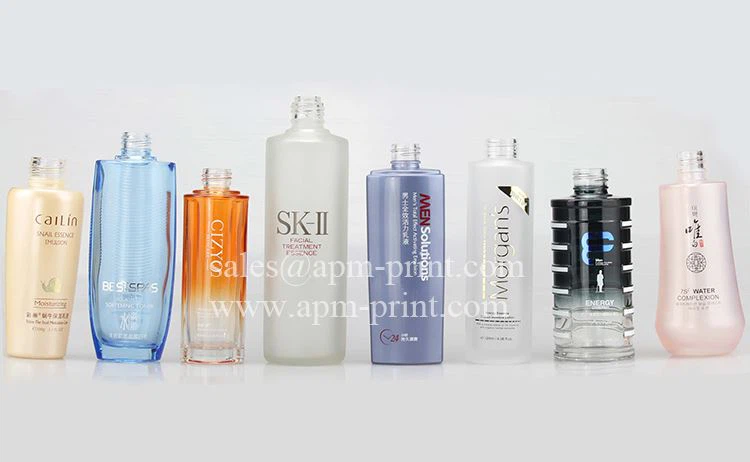

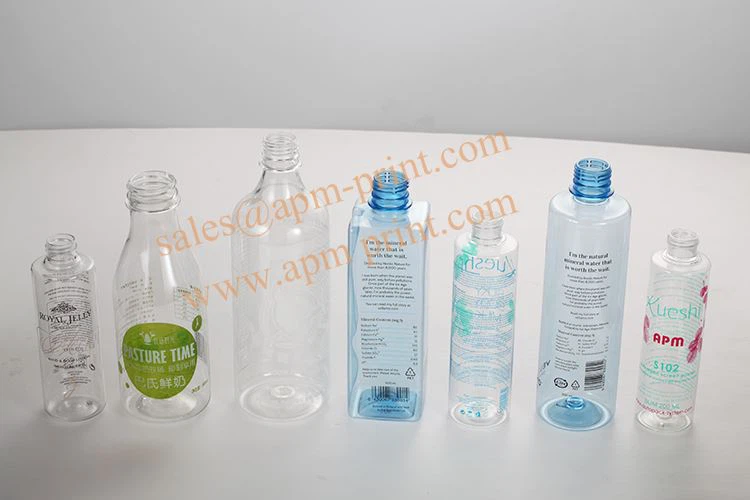

The APM-S102 is designed for multi-color decoration of cylindrical/ova/square/plastic glass bottles,cups,hard tubes at high production speeds. It is suitable for glass and plastic containers printing with UV ink. Need registration point for multi-color cylindrical bottle printing.
Reliability and speed make the S102 ideal for off-line or in-line 24/7 production.
Quick Details
Plate Type: Screen Printer
Condition: New
Place of Origin: Guangdong, China (Mainland)
Brand Name: APM
Model Number: S102
Usage: bottle printer
Automatic Grade: Automatic
Color & Page: Multicolor
Voltage: 380V
Gross Power: 7.78KW
Dimensions(L*W*H): 2500x1420x1700mm
Weight: 2200KG
Certification: CE Certification
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Application: Bottles
Printing speed: 3000pcs/H
Tech - data
Parameter | APM-S102 |
Round container | |
Printing diameter | 20-100mm |
Printing length | 20-300mm |
Max.printing speed | 4000pcs/h |
Oval container | |
Printing width | 25-120mm |
Printing length | 25-300mm |
Max.printing speed | 5000pcs/h |
Square container | |
Printing length | 100-200mm |
Printing width | 40-100mm |
Max.printing speed | 4000pcs/h |
Machine dimension | 1908*1000*1500mm |
Power | 380V,3P,50/60Hz |
Air supply | 5-7bar |
General Description
Automatic 1-8 color screen printing line, each unit can be separated or connected;
Automatic loading system with belt and vacuum robot(bowl feeder and hopper optional;
Auto flame treatment;
Perfect transmission system. It passes over the bottles fast and smooth;
Automatic 180 degree rotation for oval and square bottles;
Quick and easy change over from one product to another;
LED UV curing system with longer life time and energy saving,electric UV system optional;
Reliable PLC control with touch screen display;
Promise of quality SMC pneumatic parts and Panasonic, Schneider Electric parts. Other brands optional;
Automatic unloading.
Procedure
Auto loading onto belt——flame treatment——printing——UV drying —— next color printing and drying——auto unloading
