Product Introduction

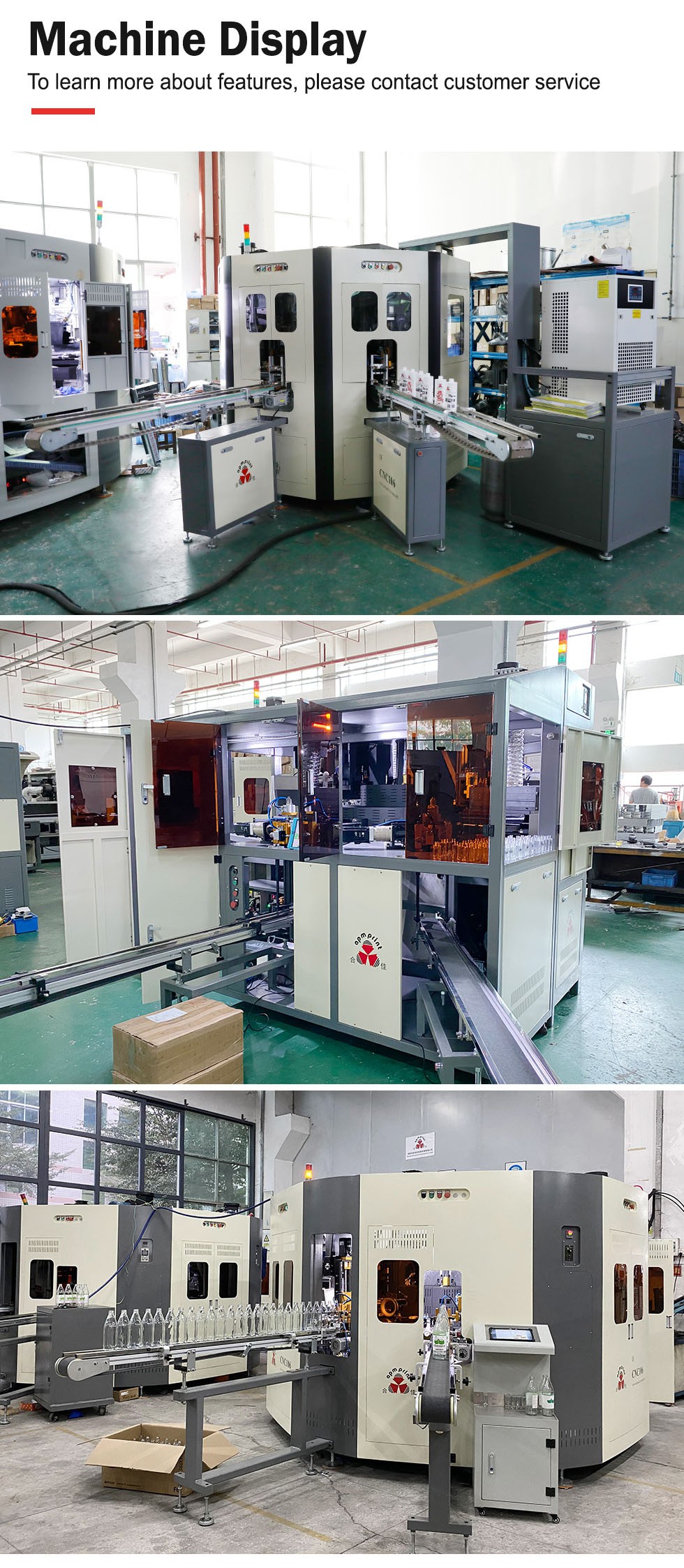

Automatic Bottle Screen Printer

The CNC106 Automatic Bottle Screen Printer is a servo-driven multi-color system engineered for high-quality graphics printing on round, oval, and square bottles. It combines precision registration and rapid curing for demanding packaging lines.

Key Functionalities

1. ✅ Multi-Shape Adaptability
Specialized fixtures secure round, oval, and square bottles (±0.1 mm repeatability).

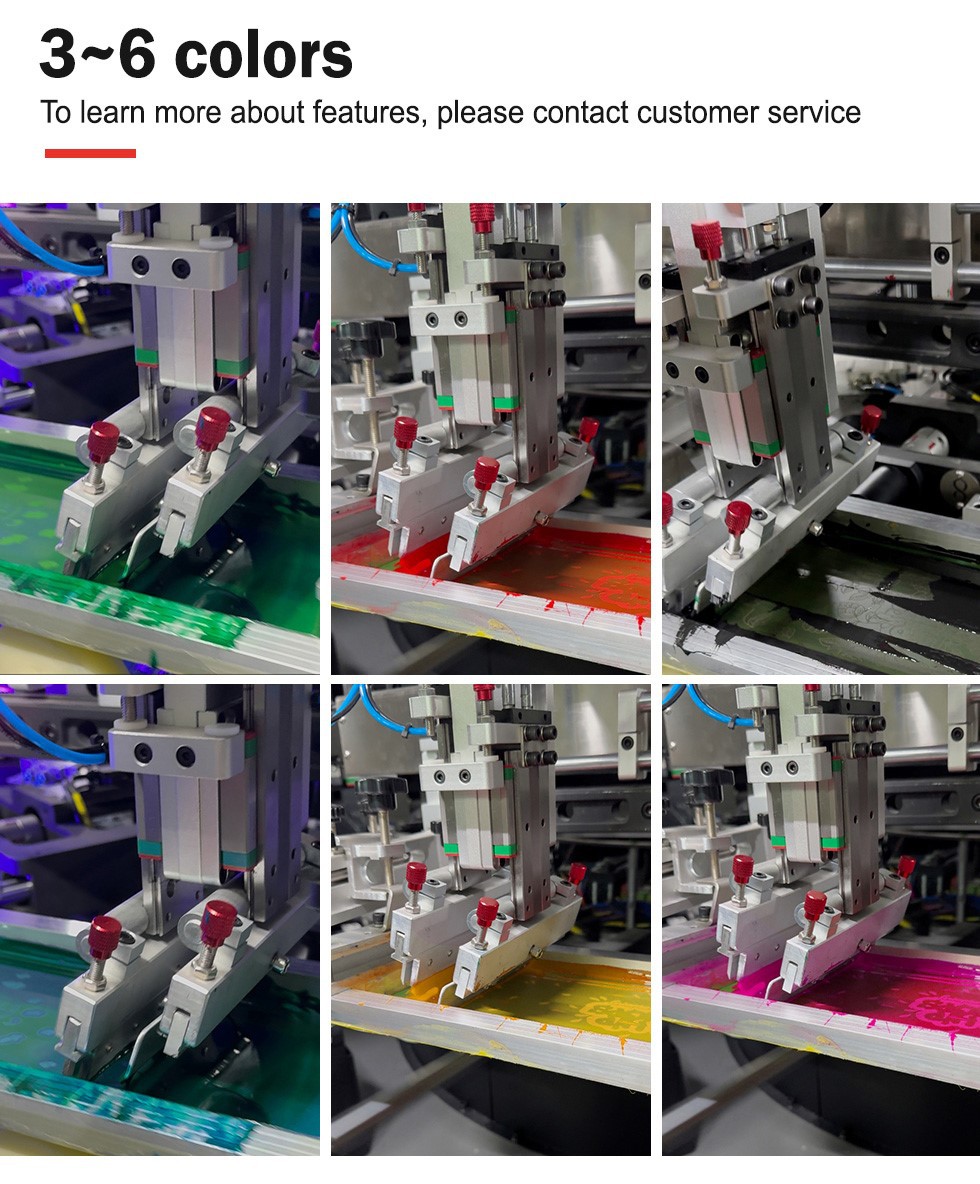

2. ✅ 3-6 Color Flexibility
Configurable color stations support gradient logos and dense barcodes.

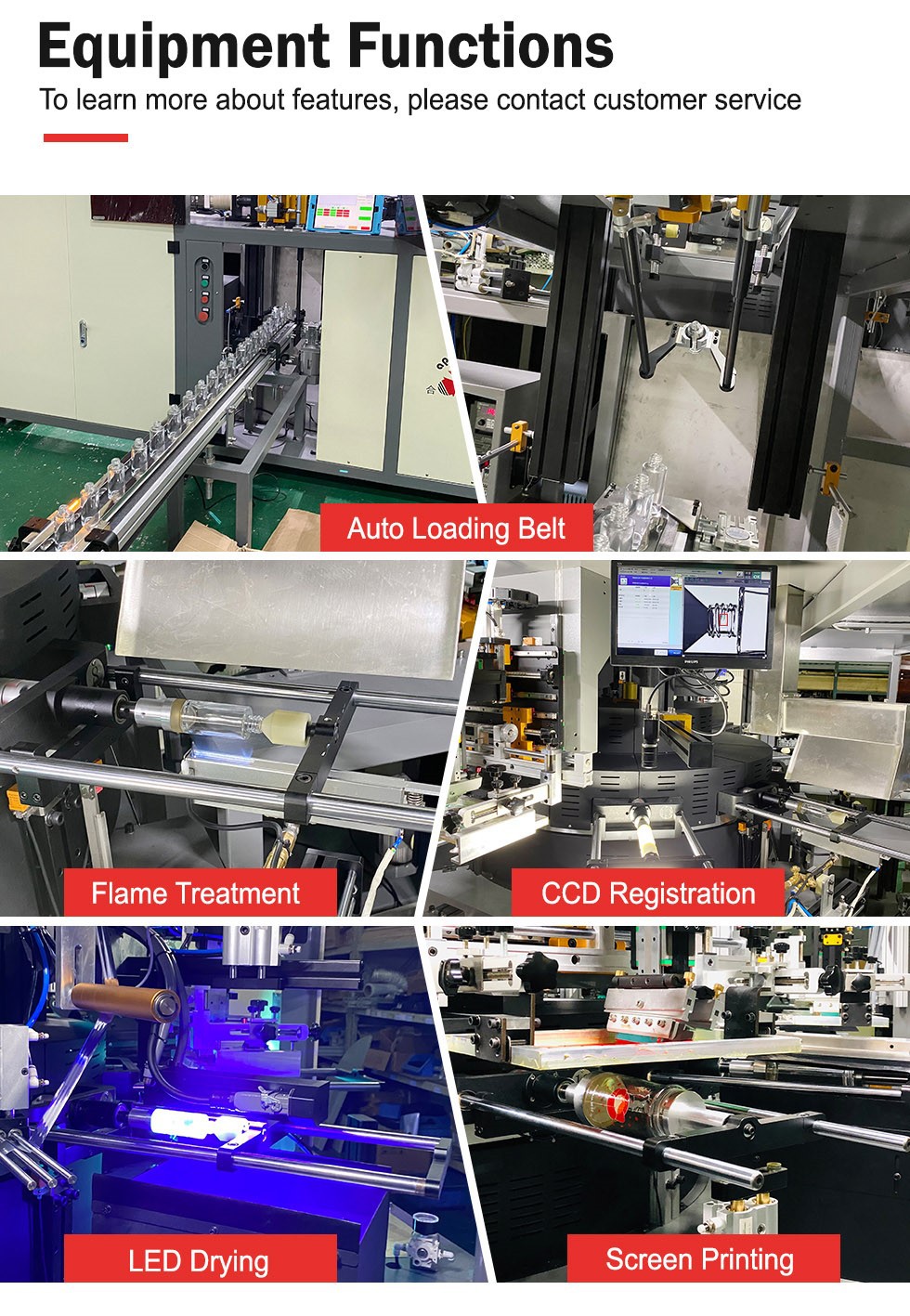

3. ✅ Full Servo Automation
Auto-feeding to UV curing with zero manual handling, reducing labor costs.

4. ✅ Large-Format Coverage
Handles bottles up to 100 mm diameter, 300 mm height, with 250 mm max print circumference.

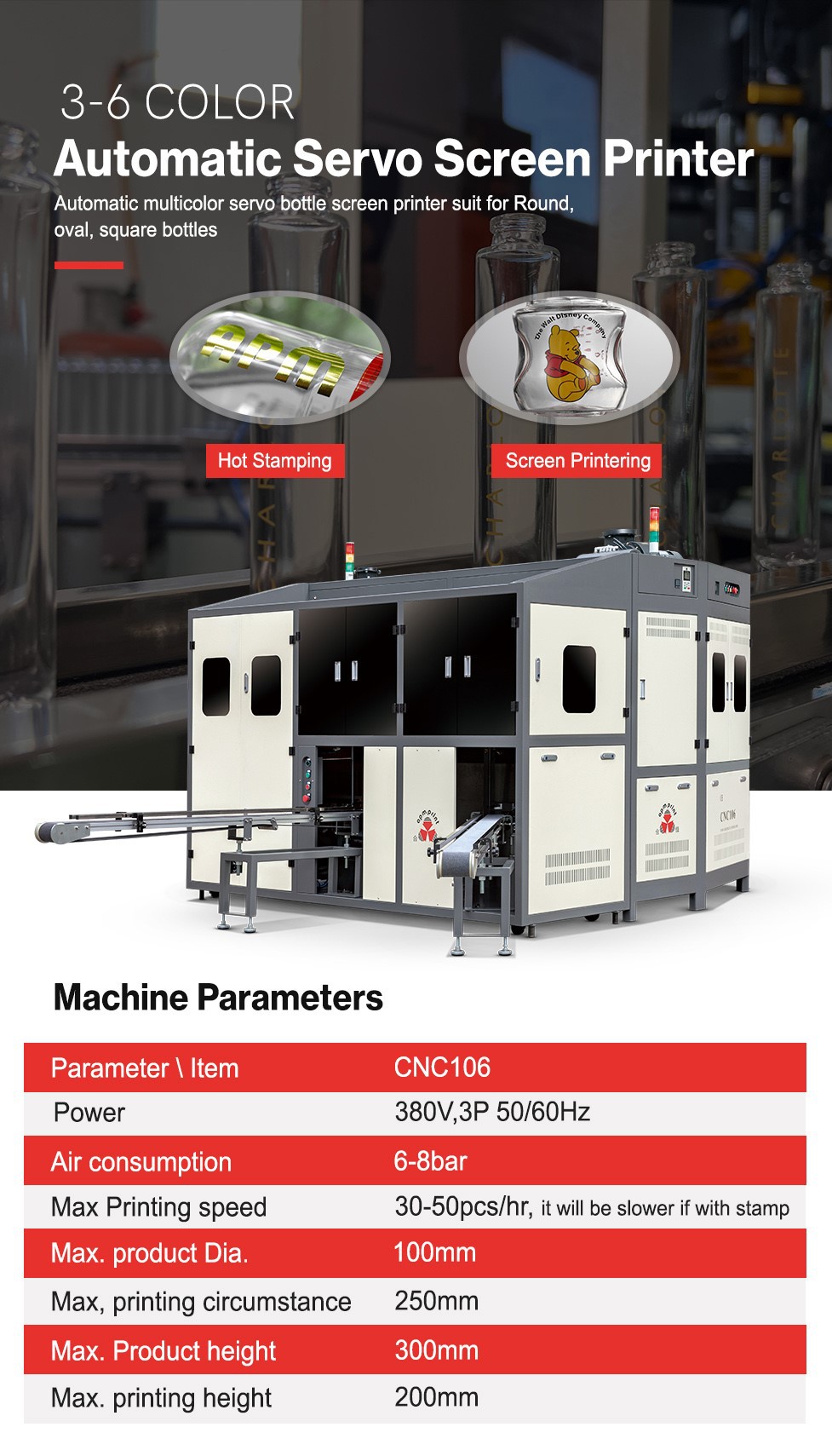

Technical Parameters

Parameter	Value
Model	CNC106
Power Supply	380V 3P 50/60Hz
Air Consumption	6-8 bar
Max. Printing Speed	3,000–5,000 pcs/day*
Max. Product Diameter	100 mm
Max. Printing Circum.	250 mm
Max. Product Height	300 mm
Max. Printing Height	200 mm
Colors Supported	3–6 colors

Application Scenarios

1. Beverage Industry: Logo/batch code printing on glass and PET bottles

2. Cosmetics: Metallic ink designs on perfume/vial containers

3. Pharma: Compliance labels on medicine bottles

4. Home Care: Warning symbols on detergent containers

FAQ

1. Q: Can it print on tapered bottles?
A: Yes, with custom conical fixtures (max. taper angle 15°).

2. Q: Is pad printing possible for concave surfaces?
A: No, this system is optimized for direct screen printing on convex surfaces.

Service Support

⚙ Customisation: Tailored feeding and printing solutions based on capacity/size needs
📦 Delivery: 120 working days after order confirmation
🔧 Technical Support: 1-year warranty, lifetime maintenance
