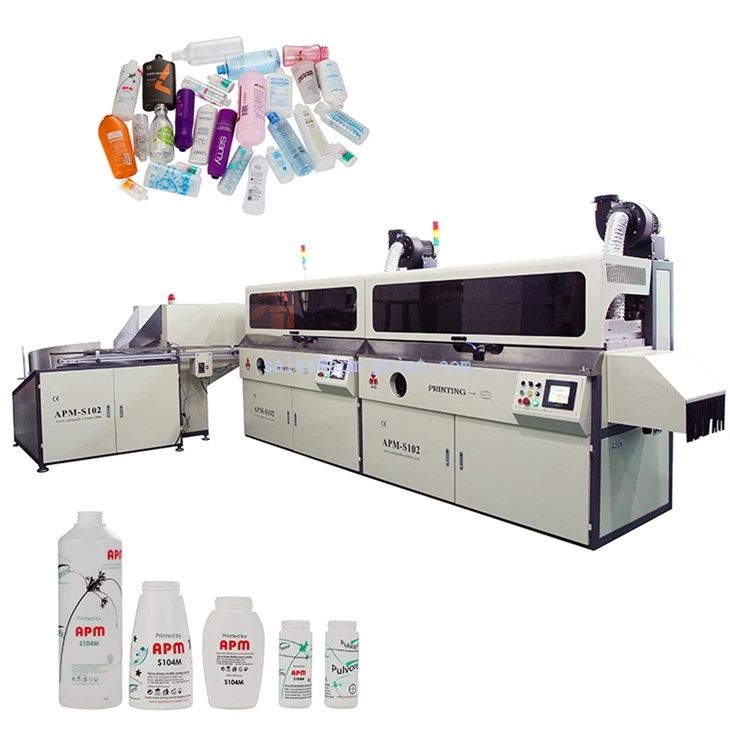

S102 Auto bottle screen printer（Flat/round/oval bottles printing) is designed for multi-colour decoration of cylindrical/oval/square plastic/glass bottles, cups, hard tubes at high production speeds. Revolutionize your production line with our fully automated silk screen printing machine - save costs and boost efficiency like never before!
Description
1. Automatic loading and unloading system with belt (bowl feeder and hopper optional)
2. Auto flame treatment, auto UV drying.
3. With perfect transmission system, the bottle printing machine passes over the bottles fast and smooth.
4. Automatic 180 degree rotation for oval and square bottles
5. Quick and easy change over from one product to another.
6. Need registration point for multi-color cylindrical bottle printing.
7. Reliable PLC control with touch screen display.
8. Auto feeder optional.
9. CE standard screen printer.
Printing procedure
Auto loading onto belt——flame treatment——printing——LED UV drying or Electric UV drying—— Auto unloading

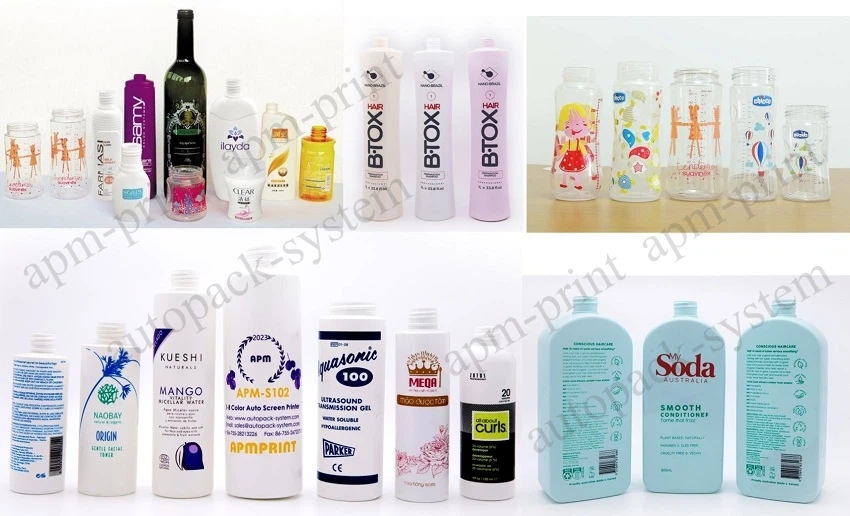

Silk screen printing samples
Parameters
| Parameter \ Item | S102 1-8 color automatic screen printer |
| Machine Dimension: | 1900x1200x1600mm Printing unit |
| 3050x1300x1500mm Feeding unit (optional) | |
| 1800x450x750mm Unloading unit (optional) | |
| Power: | 380V 3 phases 50/60Hz 6.5kw |
| Air consumption: | 5-7 bars |
| Parameter/Item | Round container | Oval container | Square container |
Printing Diameter: | 25--100mm | / | / |
| Printing Radius: | / | R20--R250mm | / |
Printing Length: | 50-280mm | 30-280mm | 100-200mm |
Printing Width: | / | 40-100mm | 40-100mm |
Printing Speed: | 3000~4000pcs/hr | 3000~5000pcs/hr | 3000~4000pcs/hr |

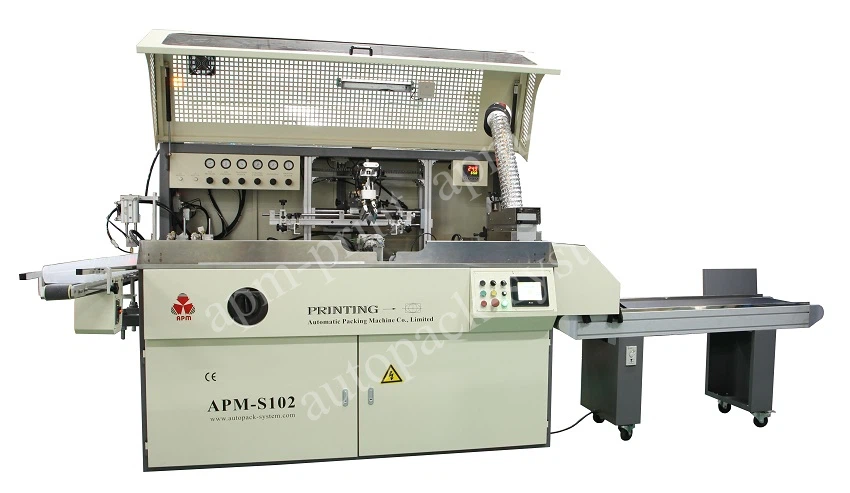

Printing machine for bottles
FAQ
1. Where are we?
We are in Shenzhen, China, as automatic screen printing machines mafacture with more than 25 years experience, we welcome customers from all over the world to visit our factory.
2. Can the machine be customized?
Sure, we design different machines for different customers, don't hesitate to tell us your requirement then we can offer you a best printing solution.
3. How long is the machine warranty?
Year+longlife technical supports.
4. How to place an order?
Please send online enquiry via official website or email(info@apm-print.com), our sales will reply offers to you. After reaching an agreement, we will sign a contract and buyer fullfil payment obigation, then APM start the order production.
Parameter \ Item | S102 1-8 color automatic screen printer |
Machine Dimension: | |
Printing unit: | 1900x1200x1600mm |
Feeding unit (optional): | 3050x1300x1500mm |
Unloading unit (optional): | 1800x450x750mm |
Power: | 380V 3 phases 50/60Hz 6.5kw |
Air consumption: | 5-7 bars |
Round container | |
Printing Diameter: | 25--100mm |
Printing Length: | 50-280mm |
Max printing speed: | 3000~4000pcs/hr |
oval container | |
Printing Radius: | R20--R250mm |
Printing Width: | 40-100mm |
Printing Length: | 30-280mm |
Max printing speed: | 3000~5000pcs/hr |
Square container | |
Max printing length: | 100-200mm |
Max printing width: | 40-100mm |
Max printing speed: | 3000~4000pcs/hr |
