Multicolor Bottle Automatic Screen Printer With UV System

Quick Details Plate Type: Screen Printer Condition: New Place of Origin: Guangdong, China (Mainland) Brand Name: APM Model Number: S102 Usage: Tube Printer, bottle printer, cup printer Automatic Grade: Automatic Color & Page: Multicolor Voltage: 380V, 50/60HZ Gross Power: 7.78KW...

Quick Details

  • Plate Type:

  • Screen Printer

  • Condition:

  • New

  • Place of Origin:

  • Guangdong, China (Mainland)

  • Brand Name:

  • APM

  • Model Number:

  • S102

  • Usage:

  • Tube Printer, bottle printer, cup printer

  • Automatic Grade:

  • Automatic

  • Color & Page:

  • Multicolor

  • Voltage:

  • 380V, 50/60HZ

  • Gross Power:

  • 7.78KW

  • Dimensions(L*W*H):

  • 1908x1000x1500mm

  • Weight:

  • 1500kg

  • Certification:

  • CE Certification

  • Warranty:

  • One Year

  • After-sales Service Provided:

  • Engineers available to service machinery overseas

  • Application:

  • Printing Bottle

  • Printing color:

  • 1~8

  • Printing speed:

  • 4000pcs/H

  • Max printing size:

  • dia.100mm

  • Dryer:

  • UV Dryer

Product Description

S102 multicolor universal automatic auto screen bottle printer, 1-8colors auto UV screen printer

S102 multicolor universal automatic auto screen bottle printer, 1-8colors auto UV screen printer

Tech - data

Parameter

APM-S102


Round container

Printing diameter

20-100mm

Printing length

20-300mm

Max.printing speed

4000pcs/h


Oval container

Printing width

25-120mm

Printing length

25-300mm

Max.printing speed

5000pcs/h


Square container

Printing length

100-200mm

Printing width

40-100mm

Max.printing speed

4000pcs/h

Machine dimension

1908*1000*1500mm

Power

380V,3P,50/60Hz

Air supply

5-7bar


Application

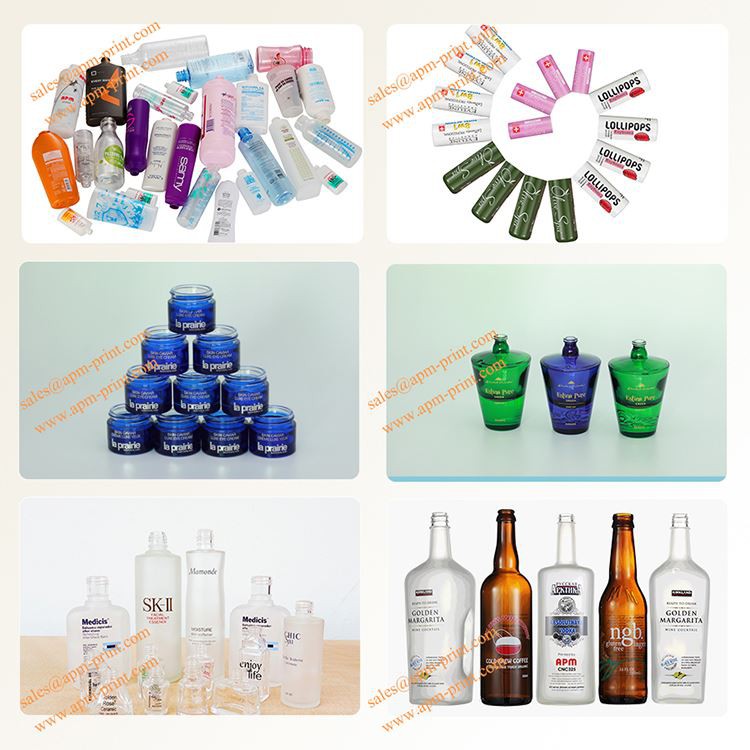

The APM-S102 is designed for multi-color decoration of cylindrical/ova/square/plastic glass bottles,cups,hard tubes at high production speeds. It is suitable for glass and plastic containers printing with UV ink. Need registration point for multi-color cylindrical bottle printing.

Reliability and speed make the S102 ideal for off-line or in-line 24/7 production.

General Description

Automatic 1-8 color screen printing line, each unit can be separated or connected;

Automatic loading system with belt and vacuum robot(bowl feeder and hopper optional;

Auto flame treatment;

Perfect transmission system. It passes over the bottles fast and smooth;

Automatic 180 degree rotation for oval and square bottles;

Quick and easy change over from one product to another;

LED UV curing system with longer life time and energy saving,electric UV system optional;

Reliable PLC control with touch screen display;

Promise of quality SMC pneumatic parts and Panasonic, Schneider Electric parts. Other brands optional;

Automatic unloading.

Procedure

Auto loading onto belt——flame treatment——printing——UV drying —— next color printing and drying——auto unloading
